- Brand Name: NoEnName_Null
- Origin: Mainland China
- Place of Origin: Shandong, China
- Brand Name: zhaoxin
- Model Number: ball valve
- Type: ball valve
- Material: Carbon steel
- Technics: Casting
- Connection: flange, welding , thread
- Shape: round
- Head Code: round
- size: 1/2” – 48”
- Pressure rating: 150 LB ~ 2500 LB

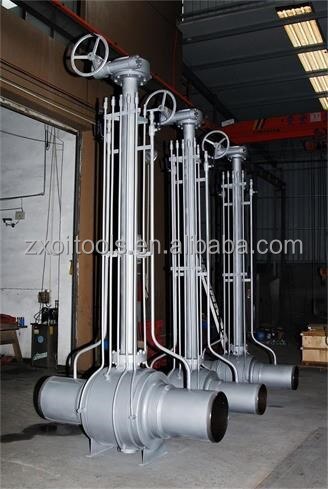

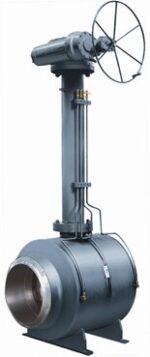

Underground ball valve with stem extension meet API 6D
Underground ball valve with stem extension is mainly used in underground nature gas, oil pipeline as an on/off control valve.Underground ball valve uses trunnion mounted ball,stem extension as per client’s requirement.The valve uses bolted body or fully welded body design.The design of seat seal uses unique two-level soft seal and metal to metal seal to form triple sealing to ensure seal reliability with small open/close torque and easy operation.So it is safe and free of maintenance to use this series of ball valve.
Standard :
Design & Manufacturing Standard: API 6D
Face to face: ASME B16.10,API 6D,DIN 3202,BSEN 558
Flange Connection Size: ASME B16.5,BSEN 1092
Testing and inspection: API 6D
|
Normal Size |
2”~ 48” |
|
Pressure rating |
150 LB ~ 2500 LB |
|
Connection |
Flange, B-Weld, S-Weld |
|
Materials |
WCB, LCB, LCC, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F 316, F304L, F316L, F51. |
|
Medium |
water, steam, oil, liquefied petroleum gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing medium, urea, and other media |
|
Operation Style |
Lever, Gearbox, Pneumatic, Electric Actuator |
PRIDUCT SHOW
