- Certification: ce
- Model Number: AKJ60F metal tube fiber laser cutting machine
- Brand Name: ACCTEK
- Origin: Mainland China
- Certification: EMC,CE
- Working area: 220*6000mm
- Laser head: Raytools
- Laser power: 2kw -4kw
- Laser controller: Cypcut
- Driving system: Servo driving system

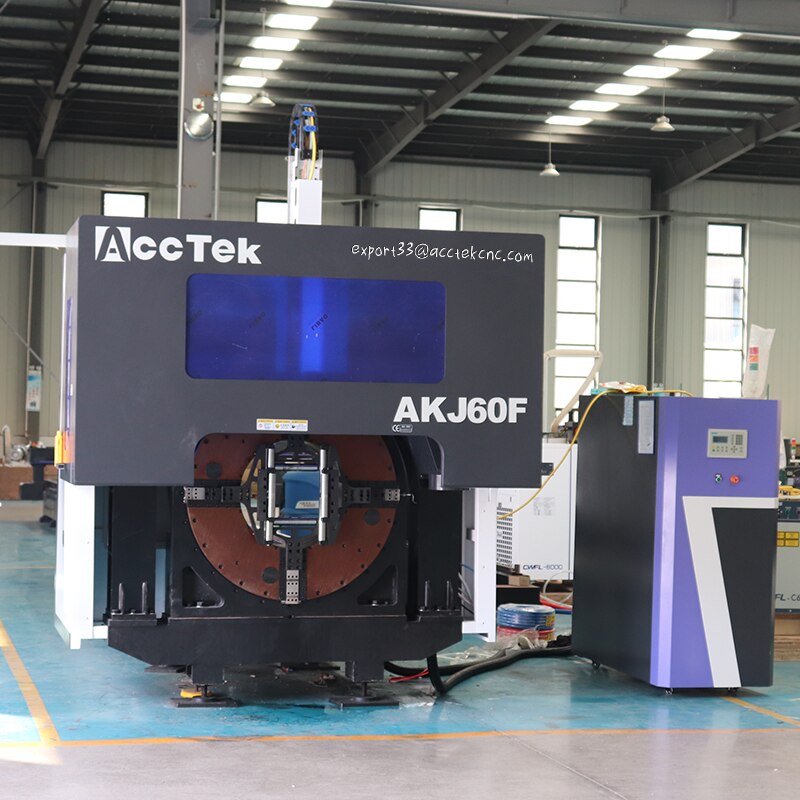

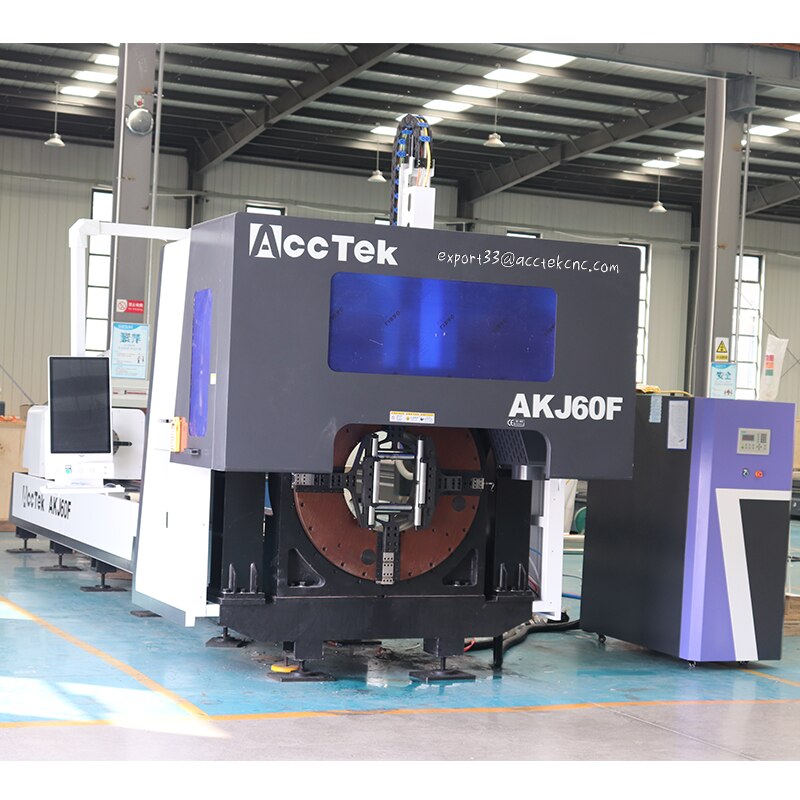

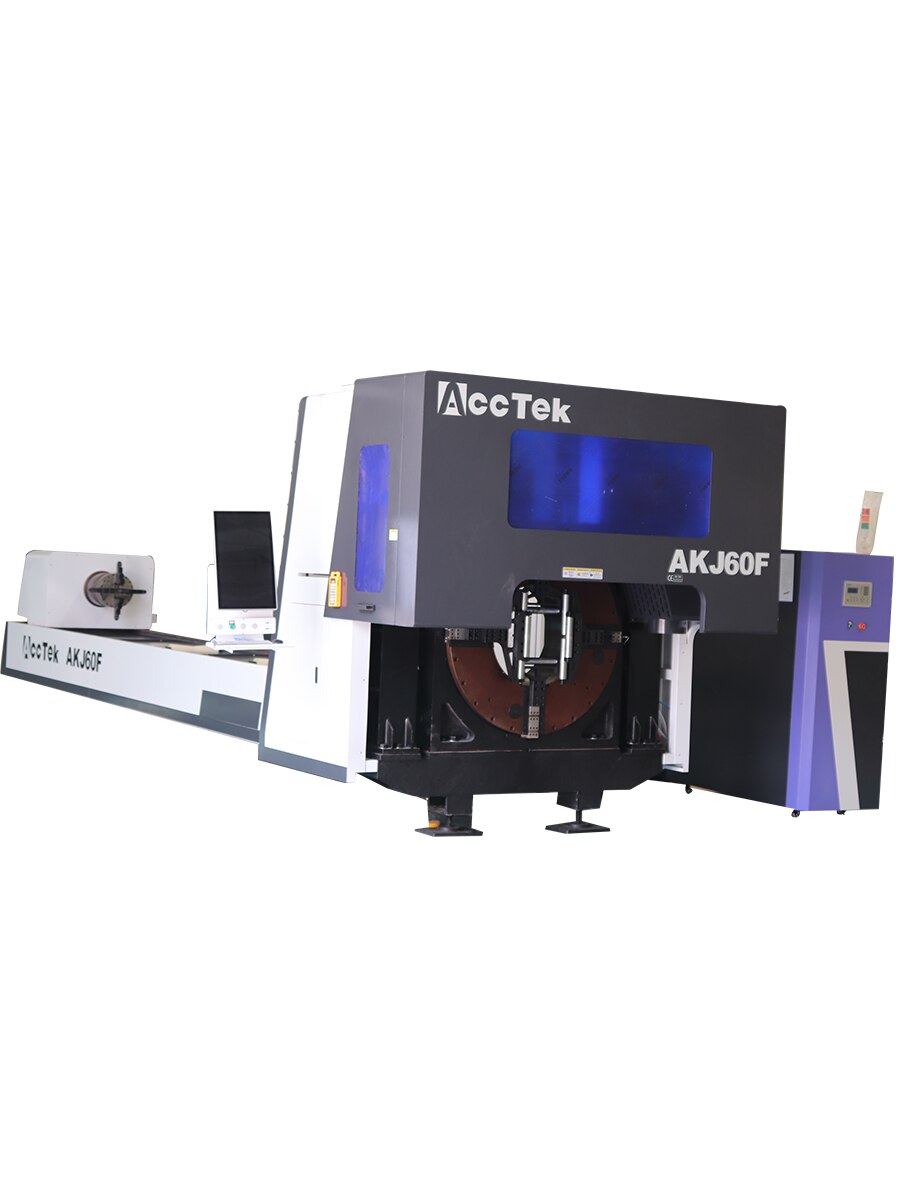

Metal Laser Cutter Machine 1000W 2000W 3000W Fiber Laser Cutting Aluminum Steel Pipe Tube with 6M Rotary Device
Features of metal tube fiber laser cutting machine:

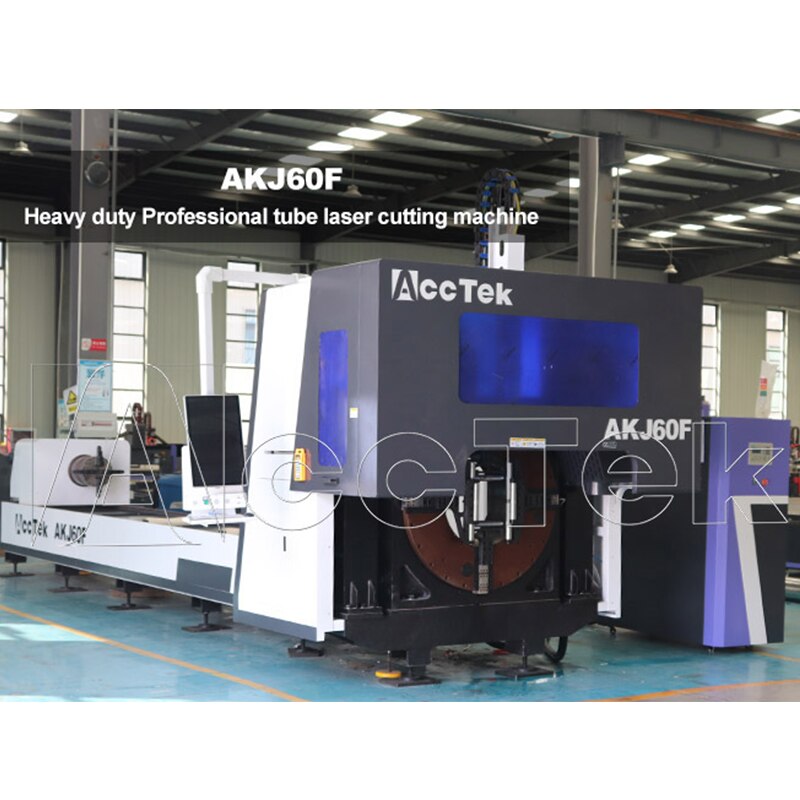

High Speed Tube Fiber Laser Cutting Machine
1500W-4000W

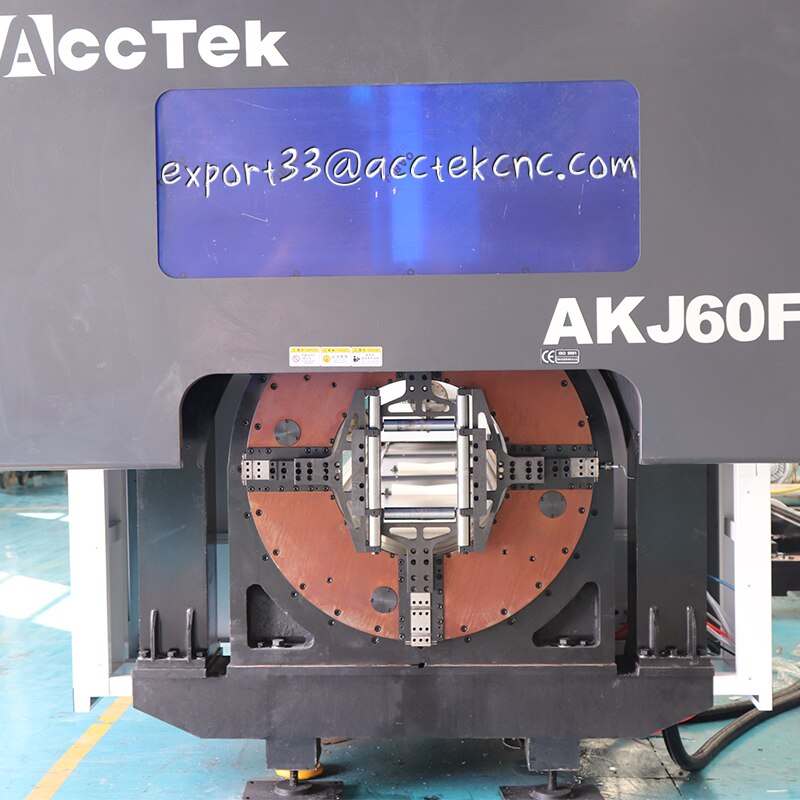

Intelligent Digital Chucks•
Strong Machine Bed•
Cut Multi Types of Tubes•
Automatic Support Installation•
Intelligent CNC System•
|
Model No. |
AKJ60F |
|
Outside Diameter |
15-220mm |
|
Square Diameter |
11*11-150*150mm |
|
Tube Length |
6200mm(can be costomized) |
|
Laser Power |
1000W 1500W 2000W 3000W 4000W 6000W |
|
Laser Source |
MAX / IPG/ Raycus / Reci / JPT |
|
Laser Head |
Raytools |
|
Machine weight |
7 Tons |
|
Final scrap length |
30-180mm |
|
Voltage |
380V /220V 50/60Hz 3/1 Phase (can be customized) |
|
Control System |
Cypcut |
|
Air pressure |
1.6 – 3.0 MPa |
|
Y-axis rack & pinion |
Taiwan Hiwin |
|
X & Z-axis ball screw |
TBI / Taiwan |
|
X, Y & Z-axis rail |
Hiwin / Taiwan |
|
Servo motor & driver |
YASKAWA / Japan |
|
Reducer |
MOTOREDUCER |
|
Pneumatic system |
AIRTAC / Taiwan |
|
Electrical proportional valve |
SMC / Japan |
|
Electrical components |
SCHNEIDER / France |
|
Relay |
OMRON / Japan |
Parts show of metal tube fiber laser cutting machine:
Samples show of metal tube fiber laser cutting machine:
Cut Multi Types of Tubes
Not only cut conventional tubes like round, square and rectangular tubes, and profiles like channel, angle and H-shaped steels, also cut special-shaped tubes easily like triangular, concave, Land C-shaped tubes, etc.
More machine details, please feel free to let me know.
